Sliding Door Self Closer – Slideback
Eco-friendly pneumatic sliding door self closer is semi-automatic and works without an external power supply. It is designed to automatically close doors after they have been opened, utilising air pressure to facilate the closing mechanism. This type of door closer is particularly effective in high traffic areas, helping ensure energy efficiency, security and the containment of controlled environment. Such as in hospitals or laboratories, schools, nursing homes & swimming pools, IT centres, offices, etc.
Easy to install and easy to use. When the door is opened manually, the self-closing feature allows the door to close automatically. It has a slow closing feature that works just like an automatic door.
Suitable door openings:
- 400 series: 420mm-910mm
- 693 series: 700mm-1150mm
- 800 series: 790mm-1360mm
- 1000 series: 990mm-1760mm please note: this product comes without optional front case
- Pneumatic Cylinder: This is the main component that uses compressed air to produce the closing force. When the door opens, air is drawn into the cylinder, and when released, it pushes the piston back to close the door.
- Control Valve: This regulates the air flow into and out of the cylinder, controlling the speed of the door as it closes. The sliding door self closer has an adjustable valve to customize the closing speed. You can find the adjustment screw at the other end where the pistons are not.
- Arm or Linkage: The linkage connects the pneumatic cylinder to the door. It transfers the linear motion of the piston to the door, facilitating its movement.
- Mounting Hardware: This includes brackets and screws necessary to install the system onto the door frame and door.
- Energy Efficiency: Helps maintain temperature control by closing doors quickly.
- Safety: Reduces the risk of accidents by ensuring doors are closed, which is particularly vital in areas where safety is a concern.
- Convenience: Allows for hands-free operation, ideal for busy environments.
Select options
This product has multiple variants. The options may be chosen on the product page
Automatic Drop Door Seal 210
- Designed for soundproof and fire resistant doors.
- Designed for wooden doors.
- It is operated automatically by the pressure applied to the door jamb with its adjustable stroke.
- It has silicone rubber seals and a durable spring mechanism that ensures efficient operation and effective sealing of the door.
- Recessed or soffit mounted under door panel.
- It can be easily adjusted after installation and offers maximum performance.
- It prevents the passage of cold and hot air. Provides insulation.
- Up and down stroke 20mm, shortening size up to 100mm.

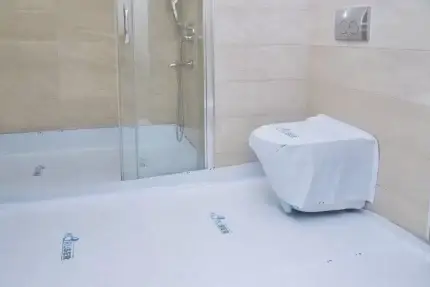

Floor Protection Mat
Safe and non-slip: The temporary floor protection cover is easily applied on various surfaces like wood and marble, ensuring a secure work environment with its self-adhesive and sturdy design, shielding floors from potential impacts.
Liquid-resistant: Its top coating repels liquids and paint, making it impermeable and easily cleanable for multiple uses.
Breathable: The Koruser's breathable structure safeguards by evaporating ground moisture effectively.
Simple application: Ideal for challenging surfaces like stairs, corners, frames, skirting boards, benchtops, bathroom and toilet ceramics, and Kitchen appliances. it requires no adhesive tape, leading to material, time, and labor savings.
Cost-effective and efficient: Once the job is done, the temporary floor protection mat is cleaned, folded, and stored for future projects.
In a roll of 50 m length and 1 m width.
Automatic Door Drop Seal 220
- Designed for soundproof and fire resistant doors.
- Designed for wooden doors.
- It is operated automatically by the pressure applied to the door jamb with its adjustable stroke.
- It has silicone rubber seals and a durable spring mechanism that ensures efficient operation and effective sealing of the door.
- Recessed or soffit mounted under door panel.
- It can be easily adjusted after installation and offers maximum performance.
- It prevents the passage of cold and hot air. Provides insulation.
- Up and down stroke 20mm, shortening size up to 100mm.
Cavity Sliding Door Self Closing & Soft Closing
Cavity Door & Pocket Door
• Cavity sliding door featuring a dual soft-closing mechanism. • Closing speed is adjustable according to door weight. • A distinctive accessory with a unique design. • Integrates self-closing, soft-closing, and door-stopping functions. • Easy to install with practical adjustment options.
** NOT IN STOCK ** Please call first to check availability. Please note: In some cases, due to the security settings of your connection, you may not be able to make a purchase here. In such a case, please let us know by phone or send an email to info@www.idealhardware.com.au. We will call you back.
Cavity Soft Close Door
• It is a soft-closing door system with a gap for pocket doors. • It is designed for wooden panel doors and can also be adapted to aluminum doors. • Each door panel has a carrying capacity of 120 kg. • It is suitable for panels with a thickness of 20–60 mm. • The closing profile hides the mechanism details and can be mounted on the rail. • High-quality bearings provide silent and durable operation. • It has a soft-closing feature in both opening and closing directions with the in-rail brake system. • The minimum door width must be 830 mm for double-sided soft-closing. • Easy and practical installation is provided. • It provides vertical adjustment.
Please call first to check availability. Please note: In some cases, due to the security settings of your connection, you may not be able to make a purchase here. In such a case, please let us know by phone or send an email to info@www.idealhardware.com.au. We will call you back.
Centre Opening Sliding Doors
Synchronised Sliding Double Door System With Soft Closers
- These systems are specifically designed for wood and aluminum panel doors, supporting up to 120 kg per door and accommodating door panels 20-60 mm thick.
- They feature a top rail with an angled design to prevent dust buildup and carrier wheels with bearings for silent, durable operation.
- Additionally, they allow for easy installation and have an adjustable height feature. Note that a two-way soft close system requires a minimum door width of 830 mm, while a one-way soft close system requires at least 500 mm.
Select options
This product has multiple variants. The options may be chosen on the product page
Self Closing & Soft Closing Concealed Hidden Hinges
Self-closing concealed hinges or hidden hinges are revolutionary in their design. Once the door closed, the hinge becomes invisible, hidden away by the jamb and the door butting up against each other.
Its most important and unique feature is that it has self-closing feature and closes softly before it slammed.
Please call first to check availability.
Please note: In some cases, due to the security settings of your connection, you may not be able to make a purchase here. In such a case, please let us know by phone or send an email to info@www.idealhardware.com.au We will call you back.
Select options
This product has multiple variants. The options may be chosen on the product page
Self Closing Hinges & Soft Closing Hinges IDH2
Self-closing hinges and soft-closing door hinges are specialized hardware designed to ensure doors close automatically and gently without slamming. These hinges are commonly used in residential and commercial properties such as front doors, internal doors and cabinets to improve functionality, security and reduce noise.
Features:
- Door weight: 40/60/80kgs
- Door width: 800~900mm
- Max door height: 2200mm
- Door thickness: 40~60mm
- When “F type” (IDH2) is used, it should be defined as left opening or right opening.
- Colour: Black or Silver
- TESTED FOR FIRE RATING
- Please make the right choice, returns are not accepted
Select options
This product has multiple variants. The options may be chosen on the product page
Self Closing & Soft Closing Hinges IDH3
Self-Closing Hydraulic Hinges:
- Automatically pull the door closed after it’s opened.
- Ideal for interior doors, cabinet doors, and gates.
- Often use a spring mechanism to provide the closing force.
Soft-Closing Auto Close Hinges:
- Use a hydraulic or pneumatic mechanism to slow down the door’s movement just before it closes.
- Prevent slamming and reduce wear and tear on the door and frame.
- Commonly used in cabinets and high-traffic areas.
Combination Self-Closing and Soft-Closing Hinges:
- Offer both automatic closing and gentle closing action.
- Perfect for modern homes and offices where convenience and quiet operation are priorities.
- Door weight: 50/70/90kgs.
- Door width: 800~1200mm.
- Door thickness: 40~60mm.
- Max door height: 2400mm
- Opening angle: 180°.
- There is no difference in right or left opening, it can be used for both; no need to determine door handing.
- Colour: Silver.
- Lifespan: 200,000 cycles.
- Please make the right choice; returns are not accepted.
Select options
This product has multiple variants. The options may be chosen on the product page

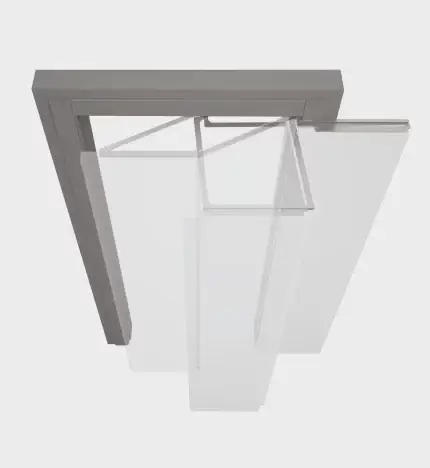

Slide And Fold Door 180
** NOT IN STOCK ** Please call first to check availability.
- The 180 degree folding door scissor system maximises the passage area while only requiring half the width of the door's closing arc, making it ideal for tight spaces.
- It is suitable for wooden doors with a thickness of 36-44 mm and has a load capacity of 50 kg.
- A quick-fitting kit is available for 40 mm doors, allowing for easy installation without milling or CNC work.
- This kit can be painted to match the door.
- The mechanism is made of stainless steel, making it suitable for wet environments, and comes in five sizes with right- or left-handed installation options depending on the position of the door.
- It is designed for internal doors and the handle can only be fitted on one side.
Sliding Door Hydraulic Self Closer – Slidex
Hydraulic door closers & self closing sliding door closer with soft closing and time delay features. Without an external power source, and no maintenance…
The Slidex system is a quiet, user friendly, self closing system which brings the door gently to a close. The integrated hydraulic soft closer, brings the door to a safe and cushioned close, making it ideal for disabled access systems or public areas. The internal door brake can also be adjusted to allow the user to dictate the speed of opening preventing damage to the door and system.
Slidex door products help in weatherization and provide an energy efficient solution.
- Self Closing System for metal or wood doors, up to 80kg.
- Designed with a hydraulic self close feature which brings the door to a gentle close. Soft, hydraulically controlled closure.
- Ideal for hospitals and disabled access points.
- Interior applications only (for exterior use, special order only).
- Comes complete with a hydraulically controlled soft close feature.
- Adjustable closing speed options plus delayed closing timer.
- Door brake reduces opening speed to prevent damage to the door and system.
- Optional hold open unit giving adjustable time delay before self closing
- Mounting Hardware Included.
- Left hand and right hand opening versions available.
