Sliding Door Hydraulic Self Closer – Slidex

Self Closing Sliding Door

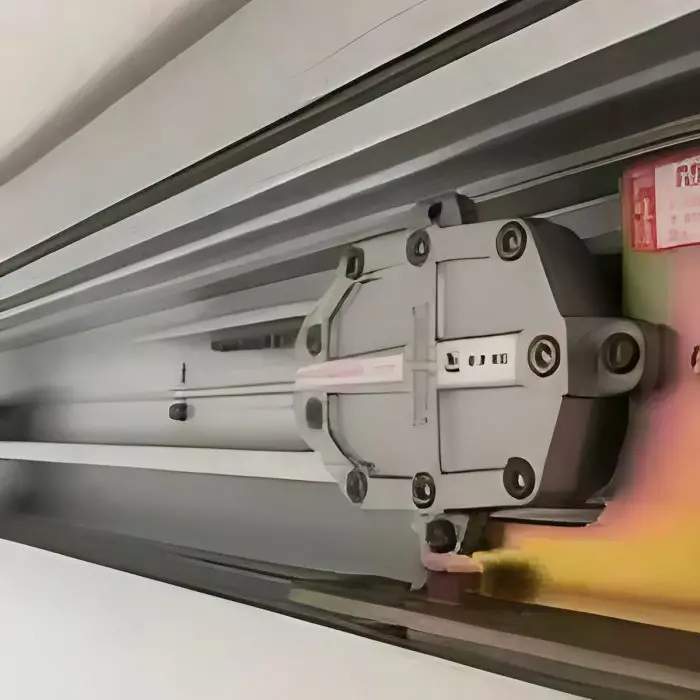

The Slidex system is a quiet, user friendly self closing door system with an integrated hydraulic self closing system. The system is designed to provide quiet and trouble-free operation, and it also has an adjustable closing speed feature. Closing force and closing speed can be adjusted to suit various applications. The optional delayed closing timer also allows you to adjust the time before the self close engages. You can adjust it to keep the door open as long as needed. Ideal for hospitals and disabled access points. Available in left hand and right hand opening versions.

Wheel chair friendly. Designed without the need for floor track.

Slidex allows for easy movement and accessibility between rooms.

• No external power connection needed.
• Completed with hydraulic self-closing feature that gently closes the door.
• It is designed to provide smooth and silent operation with its hydraulically controlled slow closing feature.
• Suitable for both domestic and commercial interior applications.
• Ideal for hospitals and disabled access points.
• There is a brake to reduce the opening speed and not to damage the door and the system.
• Self-closing sliding door system with adjustable closing speed and an optional hold-open unit for a time delay before closing.
• Please make the right choice; returns are not accepted.

It operates between -10°C to 40°C temperature ranges.

Product Code	Description	No of Doors	Track Length	Max Door Width	Door Thickness	Door Material	Application	Max. Door Weight
SLDRH	Opens to the Right (closes to the left)	1	2200mm	1200mm	30 – 46mm	Wood/Metal	Interior	80kg
SLDLH	Opens to the Left (closes to the right)	1	2200mm	1200mm	30 – 46mm	Wood/Metal	Interior	80kg
