Self Closing & Soft Closing Concealed Hidden Hinges

Concealed or hidden door hinges are hardware components designed to keep the hinge mechanism out of sight. Installed within the door and door frame, they allow doors to swing smoothly while the hinge leaves remain invisible from the exterior, delivering a clean, seamless appearance. Clean, uninterrupted door faces with no visible hinge components, improved door aesthetics, precise alignment, and typically strong mechanical performance suitable for standard residential and light-commercial doors.
They are ideal for high-end entry doors & interior doors in minimalist or modern spaces, museums, galleries, and any applications where aesthetics are prioritized without sacrificing functionality.
Aesthetic elegance, uninterrupted lines and concealed hardware, versatile mounting options, and strong load performance for typical residential and light commercial doors.
Self-closing hinges: Automatically close the door after a short opening, bringing it to a closed position without manual effort, reducing draft, noise, and air leakage in interior spaces.. Typically achieved with a spring mechanism, inside the hinge, that biases the door toward the closed position as it nears the jamb.
Soft-closing hinges: Use dampers or hydraulic/pneumatic components to slow the door as it approaches the closed position, preventing slams and providing a controlled, quiet close. Soft-close dampers eliminate impact sounds and reduce wear on latches and frames, extending hinge life.
The combined effect of self-close and soft-close provides a predictable closing motion and reduces the risk of doors slamming in:
For rooms where quiet entry/exit or energy efficiency is important (bedrooms, libraries, hospitals, or offices), soft-close adds a premium feel and reduces noise.
In high-traffic spaces, self-closing helps maintain door closure without manual intervention, improving usability and comfort.

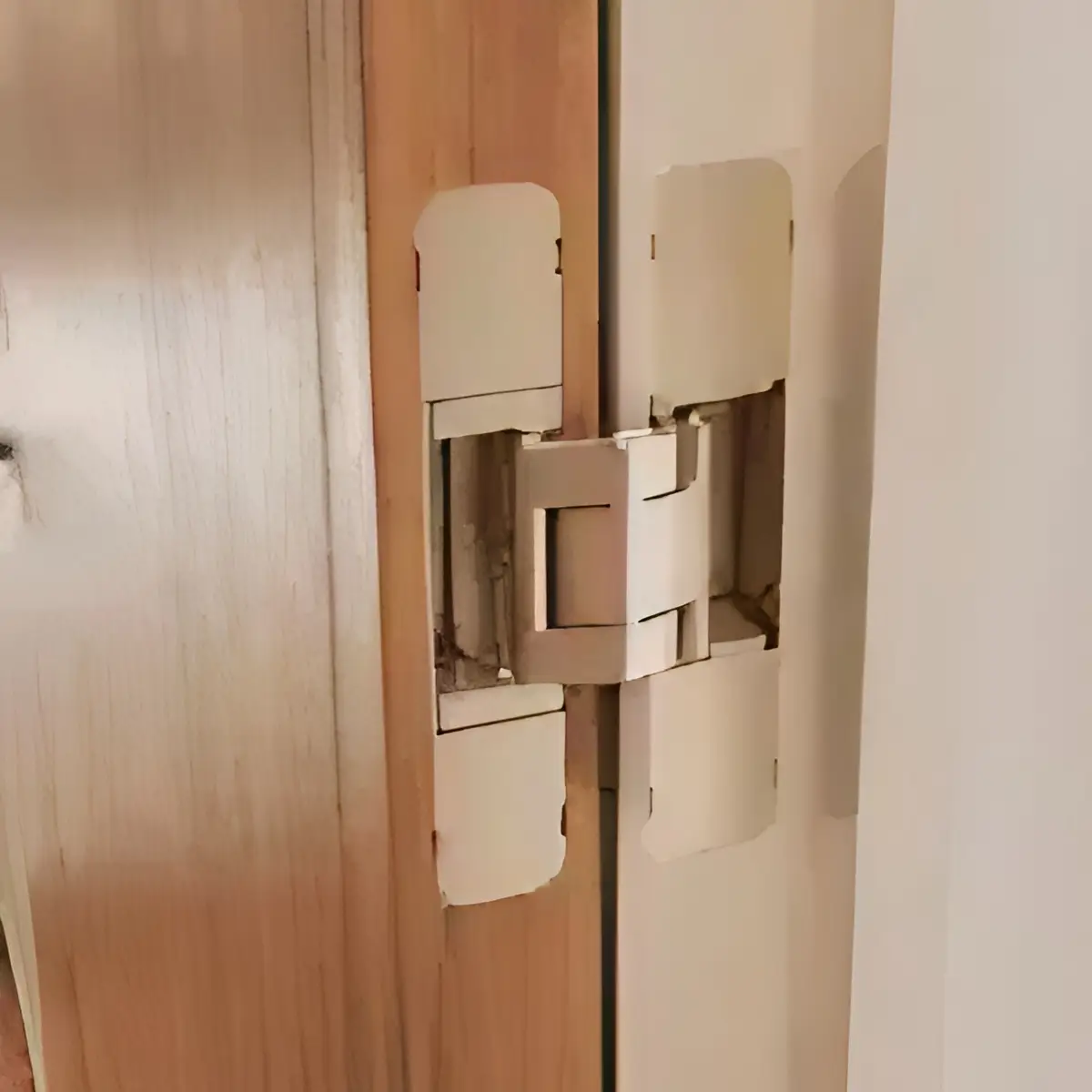

The invisible hinges allow the installer to adjust them in two dimensions; up – down and in – out. This is extremely important in new builds where buildings tend to move a bit in the first few years after construction. Also, in Australia, where we have a lot of moving clay soil, the doors need to be adjusted according to the seasons and weather changes. The major advantage, beyond the purely aesthetic value of concealed hinges, is the ability to make minor adjustments very simply to the seating of the doors after they are installed, by turning small adjustment screws.

Since they aren’t exposed, and are therefore tamper-proof, they provide security that regular hinges don’t. Hidden hinges are ideal hardware for hidden doors or panels because the hinges themselves are not visible when closed. Seamless panelling is achieved every time.

Whether the design is for a secret room, storage, bunker, gun safe, panic room or any hidden area, invisible hinges are easily installed.

Features:

• 2D adjustable: left/right ±2.5mm， up/down: ±2.5mm.
• With integrated self closing function for doors up to 80 kg.
• Suitable for high traffic doors.
• Suitable for internal & external (must be under cover) locations.
• Suitable for residential, semi commercial locations.
• Fire rated.

• Door thickness: min 40-42mm.
• Door weight max 80kg – Subject to Width & Weight Chart.
• Working temperature range -10 – +45 Celsius
• The maximum opening angle is 125°
• The closing force is 7 N.m per hydraulic & self closing hinge.
• Reliability Certified to over 200,000 cycles.
• Sold as a kit.
• Concealed hinge in matt silver and black.
• Please make the right choice; returns are not accepted.
