A sliding door self-closing mechanism automatically closes the sliding door after it has been opened, ensuring convenience, security, and energy efficiency. It typically uses a hydraulic or spring-loaded system to gently guide the door back into place. Ideal for homes, offices, and commercial spaces, it helps maintain privacy, prevent drafts, and enhance safety.

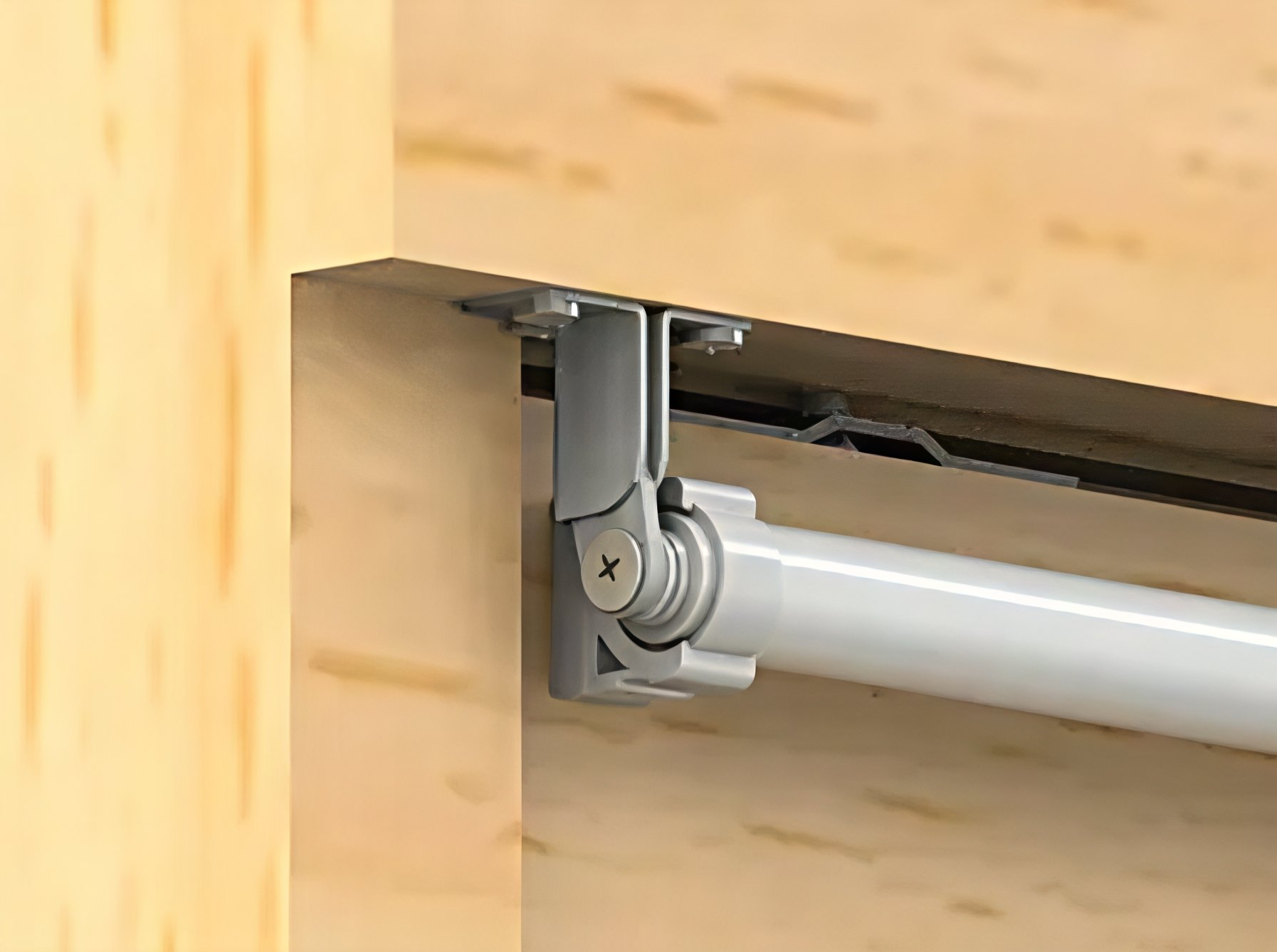

Sliding Door Self Closer – Slideback
Eco-friendly pneumatic sliding door self closer is semi-automatic and works without an external power supply. It is designed to automatically close doors after they have been opened, utilising air pressure to facilate the closing mechanism. This type of door closer is particularly effective in high traffic areas, helping ensure energy efficiency, security and the containment of controlled environment. Such as in hospitals or laboratories, schools, nursing homes & swimming pools, IT centres, offices, etc.
Easy to install and easy to use. When the door is opened manually, the self-closing feature allows the door to close automatically. It has a slow closing feature that works just like an automatic door.
Suitable door openings:
- 400 series: 420mm-910mm
- 693 series: 700mm-1150mm
- 800 series: 790mm-1360mm
- 1000 series: 990mm-1760mm please note: this product comes without optional front case
- Pneumatic Cylinder: This is the main component that uses compressed air to produce the closing force. When the door opens, air is drawn into the cylinder, and when released, it pushes the piston back to close the door.
- Control Valve: This regulates the air flow into and out of the cylinder, controlling the speed of the door as it closes. The sliding door self closer has an adjustable valve to customize the closing speed. You can find the adjustment screw at the other end where the pistons are not.
- Arm or Linkage: The linkage connects the pneumatic cylinder to the door. It transfers the linear motion of the piston to the door, facilitating its movement.
- Mounting Hardware: This includes brackets and screws necessary to install the system onto the door frame and door.
- Energy Efficiency: Helps maintain temperature control by closing doors quickly.
- Safety: Reduces the risk of accidents by ensuring doors are closed, which is particularly vital in areas where safety is a concern.
- Convenience: Allows for hands-free operation, ideal for busy environments.
Select options
This product has multiple variants. The options may be chosen on the product page

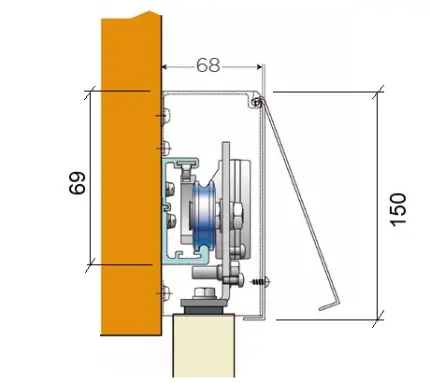

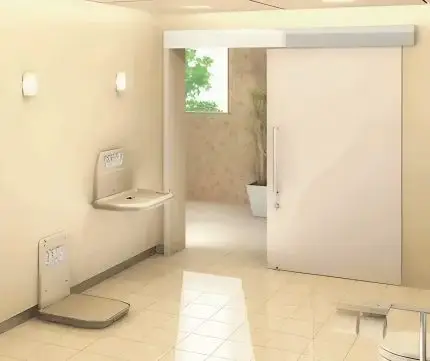

Sliding Door Hydraulic Self Closer – Slidex
Hydraulic door closers & self closing sliding door closer with soft closing and time delay features. Without an external power source, and no maintenance…
The Slidex system is a quiet, user friendly, self closing system which brings the door gently to a close. The integrated hydraulic soft closer, brings the door to a safe and cushioned close, making it ideal for disabled access systems or public areas. The internal door brake can also be adjusted to allow the user to dictate the speed of opening preventing damage to the door and system.
Slidex door products help in weatherization and provide an energy efficient solution.
- Self Closing System for metal or wood doors, up to 80kg.
- Designed with a hydraulic self close feature which brings the door to a gentle close. Soft, hydraulically controlled closure.
- Ideal for hospitals and disabled access points.
- Interior applications only (for exterior use, special order only).
- Comes complete with a hydraulically controlled soft close feature.
- Adjustable closing speed options plus delayed closing timer.
- Door brake reduces opening speed to prevent damage to the door and system.
- Optional hold open unit giving adjustable time delay before self closing
- Mounting Hardware Included.
- Left hand and right hand opening versions available.
Select options
This product has multiple variants. The options may be chosen on the product page

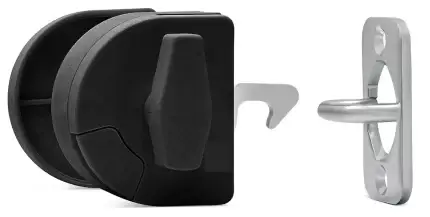

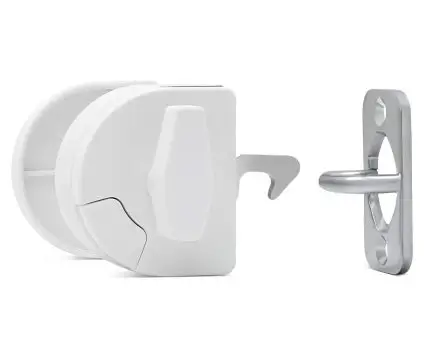

Sliding Door Latch
The sliding door latch is a two-way latch designed for sliding patio doors, serving as a safety measure to prevent young children from exiting. It can be disengaged** when children are not present, and is also intended to assist individuals with special needs, such as those with autism, sleepwalkers, and adults with dementia.
**Disangaging feature is not acceptable for pool safe regulation.
Our sliding door latch is suitable for use with sliding patio doors and can enhance pool safety. Depending on local regulations, doors and gates may be configured to act as safety barriers around pools or spas.
Disclaimer: The above checklist is for educational purposes only and does not replace a professional pool inspection.
Please note: NO RETURN POLICY IS APPLIED
In some cases, due to the security settings of your connection, you may not be able to make a purchase here. In such a case, please let us know by phone or send an email to info@www.idealhardware.com.au. We will call you back.
Another option: This product is also sold on our eBay page. You can reach our pages from the link below.
eBay.com.au/latchback
Select options
This product has multiple variants. The options may be chosen on the product page
Sliding Door Self-Closing refers to a mechanism that automatically closes a sliding door after it has been opened, ensuring convenience, security, and energy efficiency. This feature is commonly used in residential, commercial, and industrial settings, often incorporating hydraulic or spring-based systems for smooth operation. Ideal for maintaining privacy, safety, and climate control.
